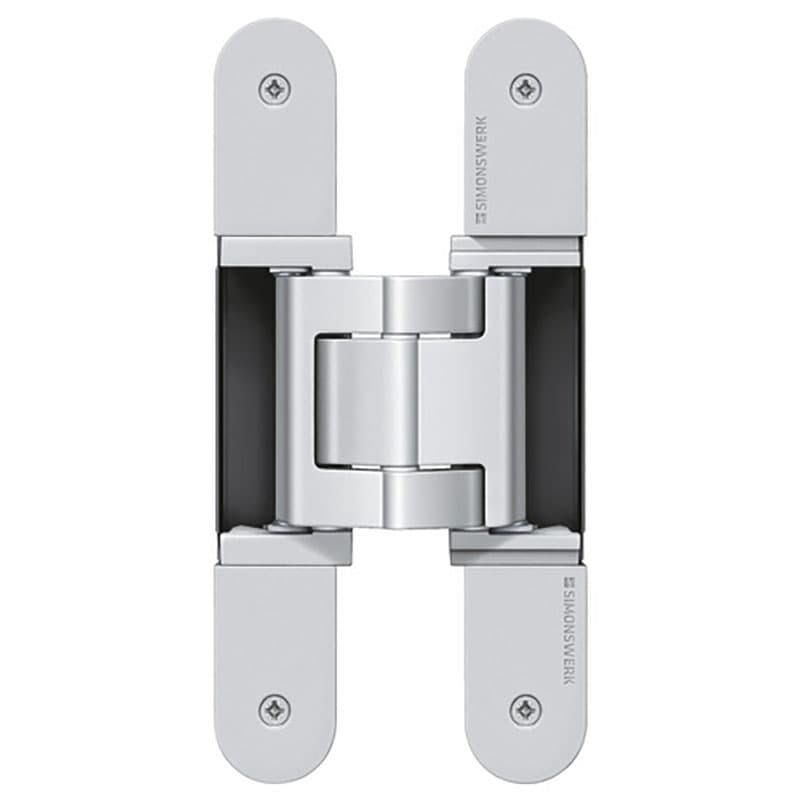

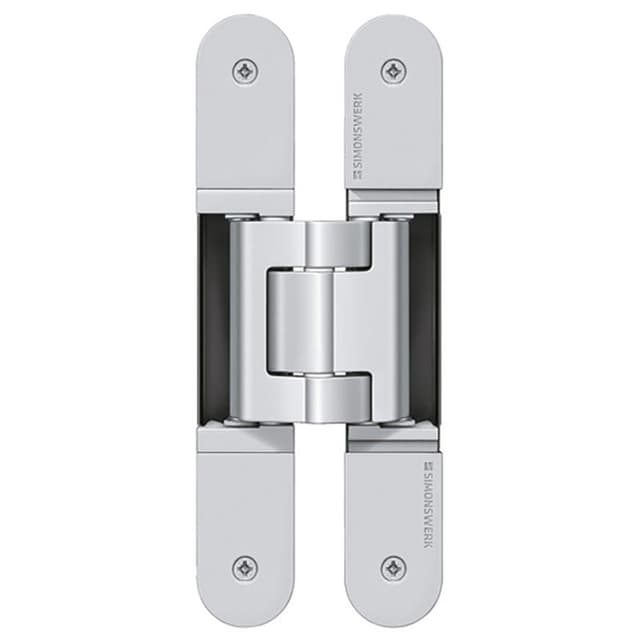

ECH1006 3D Concealed Hinge (8mm Cladding / FR 100kg)
A 3D concealed hinge for fire-rated unrebated internal doors with up to 8mm of cladding on both sides. Suitable for up to FD30 for timber and steel interior doors up to 100kg.
Additional Features:
3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.0 mm)
Opening angle up to 180 degrees
Right hand and left hand applicable
Maintenance-free slide bearings
8mm of cladding either side
FD30
Up to 100kg
Suitable for timber & steel doors
6 finish options
Finish options
Our ECH1006 hinge is available in 6 premium finishes.
Satin Brass
Bronze
Dark Bronze
Matt Black
Stainless Steel Look
Polished Nickel
