ECH1005 3D Concealed Hinge (8mm Cladding / 100kg)

Envo Hardware

ECH1005 3D Concealed Hinge (8mm Cladding / 100kg)

ECH1005 3D Concealed Hinge (8mm Cladding / 120kg)

A 3D concealed hinge for unrebated internal doors with up to 8mm of cladding on both sides. Suitable for timber and steel interior doors up to 100kg.

Additional Features:

  • 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.0 mm)

  • Opening angle up to 180 degrees

  • Right hand and left hand applicable

  • Maintenance-free slide bearings

ECH1005 3D Concealed Hinge (8mm Cladding / 120kg)
8mm of cladding either side
Up to 100kg
Suitable for timber & steel doors
6 finish options
Finish options
Our ECH1005 hinge is available in 6 premium finishes.

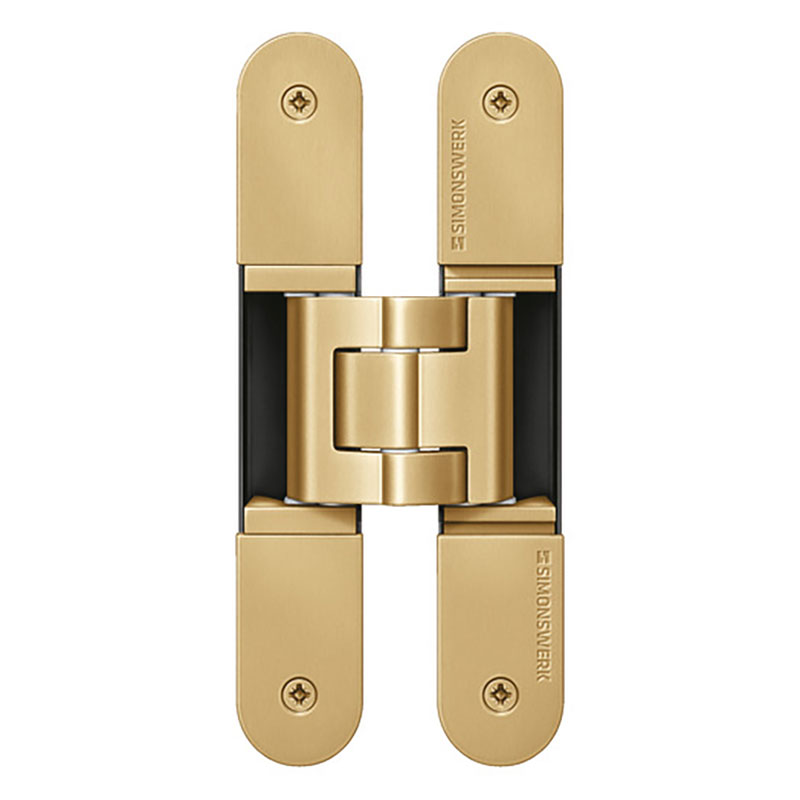

satin brass 3D concealed hinge
Satin Brass

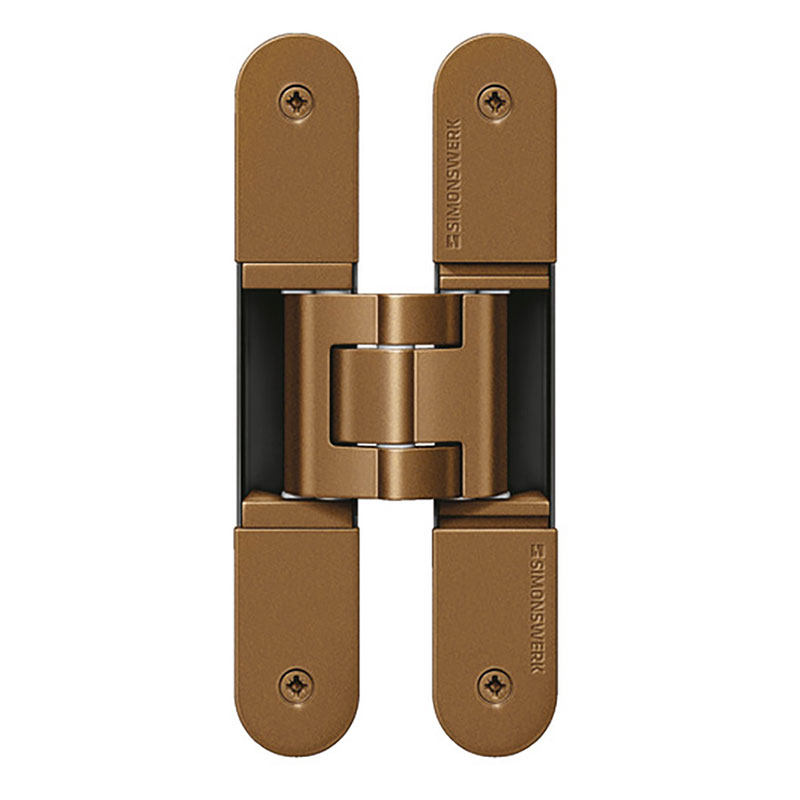

3D concealed hinge in Bronze
Bronze
Dark Bronze concealed 3D hinge
Dark Bronze

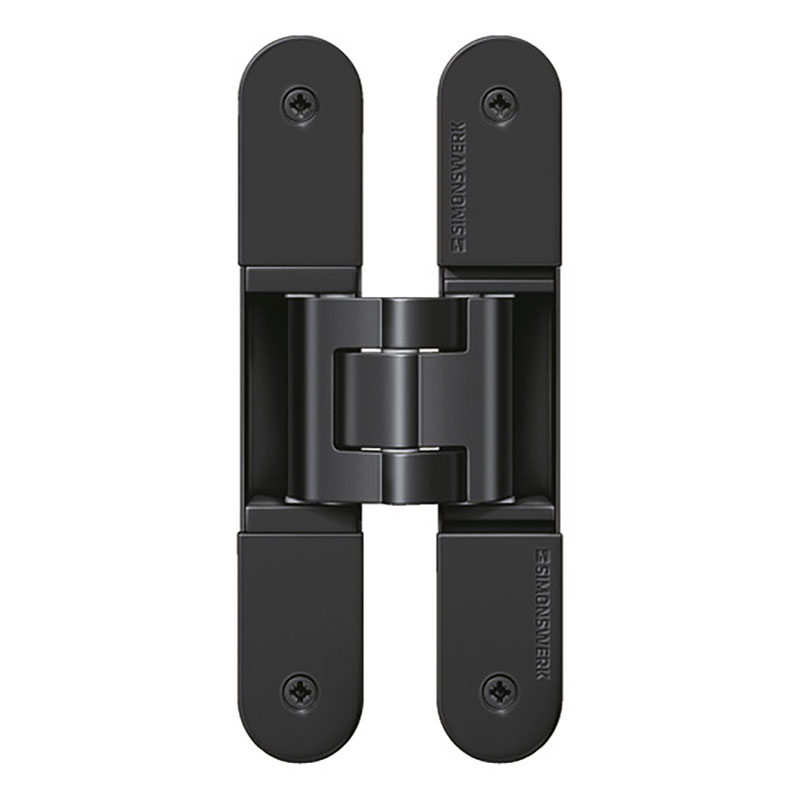

matt black 3D hinge
Matt Black

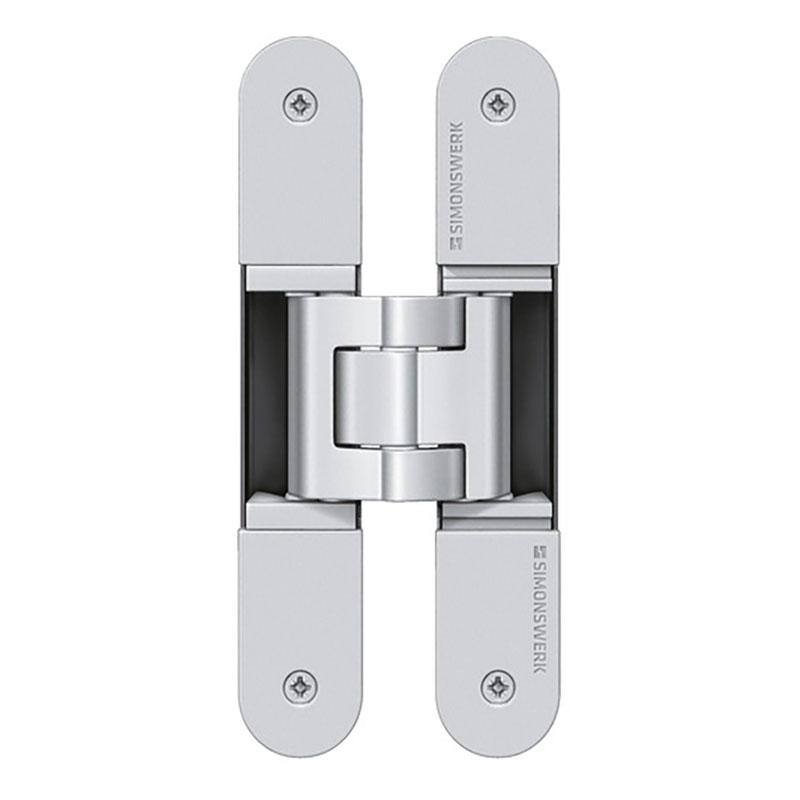

Stainless Steel Look 3D concealed hinge
Stainless Steel Look

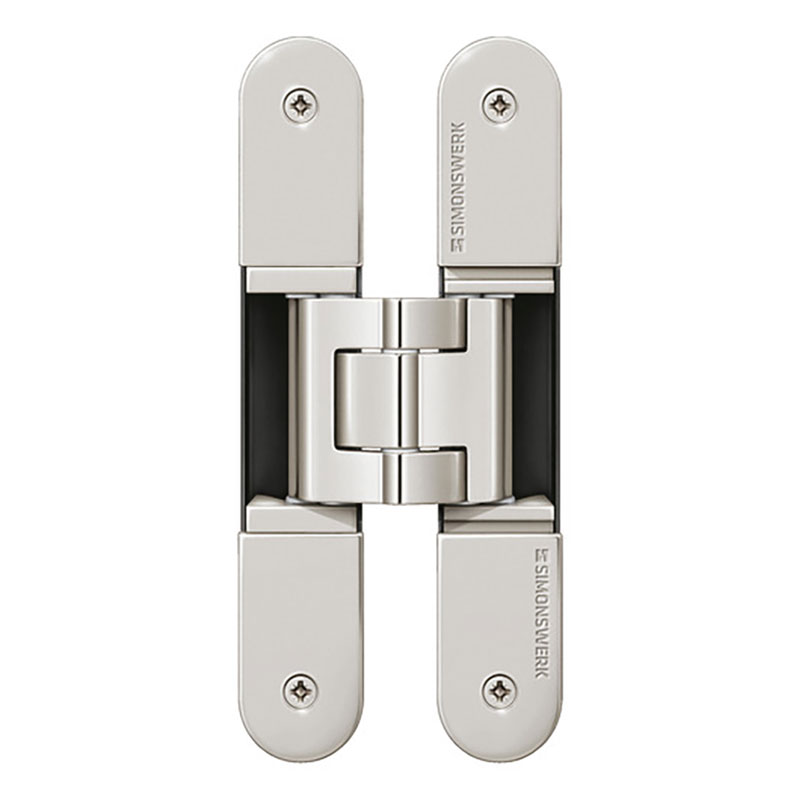

polished nickel 3D concealed hinge
Polished Nickel
